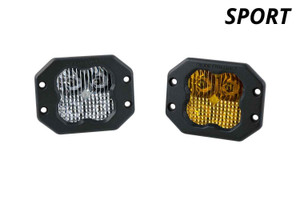

A set of flush mount Diode Dynamics SS3 Pro LED pods, one in white and one in yellow, over a plain white backdrop.

Diode Dynamics | SS3 Pro Flush Mount LED Pod

Diode Dynamics
SKU:
DD-SS3PF
Availability:
In Stock – Ships in 1–2 business days
$209.95 - $399.95
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Overview

Bring powerful, road-ready lighting to your build with the Diode Dynamics SS3 Pro Flush Mount LED Pod. Designed for a clean, integrated look, the flush-mount design installs directly into bumpers, truck beds, or custom panels while delivering significantly higher output than the Sport version.

Available in single or pair, with white (6000K) or selective yellow (3000K) output, and multiple beam patterns(Driving, Combo, Flood, SAE Fog, Spot), the SS3 Pro is perfect for LC250 and GX 550 owners who want premium performance without compromising style.

Engineered with advanced TIR optics and high-output LEDs, the SS3 Pro offers superior efficiency and a sharply focused beam pattern for maximum usable light. With a rugged aluminum housing, polycarbonate lens, and IP69K waterproof rating, this pod is built to withstand the harshest conditions on and off the trail.

Key Features:

  • Single or Pair Options – Choose what fits your setup best

  • White or Yellow Output – Adapt lighting to conditions and style

  • Multiple Beam Patterns – Driving, Combo, Flood, SAE Fog, or Spot

  • Flush-Mount Design – Sleek, factory-style integration into bumpers/panels

  • Pro-Level Brightness – More output than Sport, powered by advanced LEDs

  • Rugged Build – IP69K waterproof, aluminum housing, polycarbonate lens

Specifications

SS3 Pro Flush Mount Output Specs – White Lens (6000K)

LENS COLOR/OPTICS PEAK BEAM INTENSITY
(CANDELA)		 ILLUMINANCE
(LUX @ 10M)		 MEASURED OUTPUT
(LUMENS)		 RAW OUTPUT
(LUMENS)		 OUTPUT COLOR
Driving Sport 54,700 cd 547 lux 1,520 lm 2,262 lm 6000K White
Driving Pro 66,500 cd 665 lux 3,000 lm 5,796 lm 6000K White
Driving Max 98,000 cd 980 lux 3,500 lm 7,920 lm 6000K White
Flood Sport 1,750 cd 18 lux 1,520 lm 2,262 lm 6000K White
Flood Pro 3,100 cd 31 lux 3,000 lm 5,796 lm 6000K White
Flood Max 2,600 cd 26 lux 3,500 lm 7,920 lm 6000K White

SS3 Pro Flush Mount Output Specs – Yellow Lens (3000K)

LENS COLOR/OPTICS PEAK BEAM INTENSITY
(CANDELA)		 ILLUMINANCE
(LUX @ 10M)		 MEASURED OUTPUT
(LUMENS)		 RAW OUTPUT
(LUMENS)		 OUTPUT COLOR
Driving Sport 53,500 cd 535 lux 1,300 lm 1,930 lm 3000K Yellow
Driving Pro 60,900 cd 609 lux 2,700 lm 5,220 lm 3000K Yellow
Flood Sport 1,600 cd 16 lux 1,300 lm 1,930 lm 3000K Yellow
Flood Pro 2,850 cd 29 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
Fog Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Max 12,500 cd 125 lux 3,500 lm 7,920 lm 3000K Yellow
Warranty
Limited lifetime warranty.
