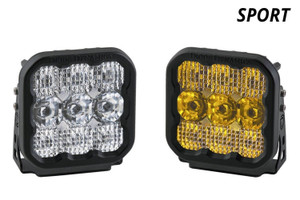

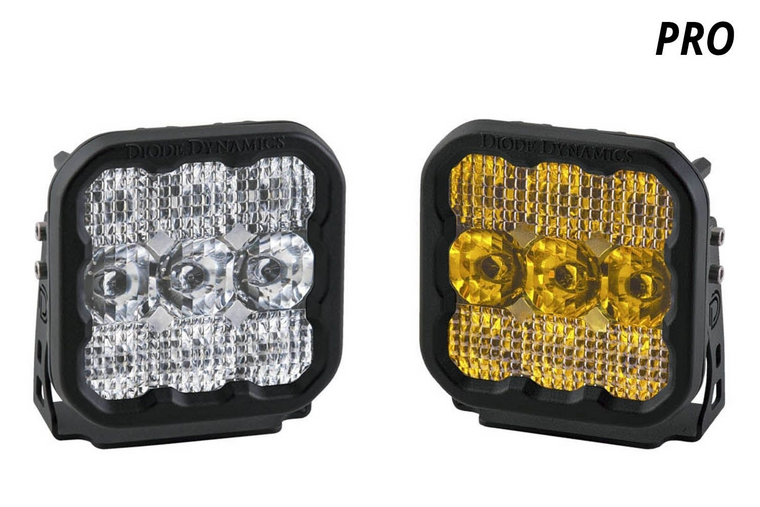

A pair of Diode Dynamics SS5 LED pods, one in white, and one in yellow, for use on the Toyota Land Cruiser as auxiliary / fog lights.
Sale

Diode Dynamics | SS5 Pro LED Pod

Diode Dynamics
SKU:
DD-6783S
Availability:
In Stock – Ships in 1–2 business days
$359.96 - $719.96
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Overview

Light your path with confidence. The SS5 Pro is the most powerful and intense LED pod on the market, providing 90W of high-output 3000K or 6000k light with top-tier TIR optics—perfect for cutting through fog, rain, or dust on the trail. With built-in linking to build your own lightbar, an amber backlight for style and visibility, and IP69K durability for harsh conditions, this pod is trail-ready. Compact, bolt-on, and crafted for serious off-road rigs. Sold individually.

Key Features:

  • Choose from Driving, Combo, Flood, or Spot beam patterns.

  • TIR optics for high efficiency and minimal glare.

  • Weatherproof and built to handle the toughest off-road conditions.

Specifications

SS5 Output Specs – White Lens (6000K)

LENS COLOR/OPTICS PEAK BEAM INTENSITY
(CANDELA)		 ILLUMINANCE
(LUX @ 10M)		 MEASURED OUTPUT
(LUMENS)		 RAW OUTPUT
(LUMENS)		 OUTPUT COLOR
Driving Sport 131,300 cd 1,300 lux 3,800 lm 4,800 lm 6000K White
Driving Pro 170,000 cd 1,700 lux 9,600 lm 9,700 lm 6000K White
Flood Sport 4,000 cd 40 lux 3,800 lm 4,800 lm 6000K White
Flood Pro 8,000 cd 80 lux 9,600 lm 9,700 lm 6000K White
Spot Sport 406,100 cd 4,000 lux 3,800 lm 4,800 lm 6000K White
Spot Pro 286,000 cd 2,900 lux 9,600 lm 9,700 lm 6000K White
Combo Sport 81,600 cd 820 lux 3,800 lm 4,800 lm 6000K White
Combo Pro 75,700 cd 750 lux 9,600 lm 9,700 lm 6000K White

SS5 Output Specs – Yellow Lens (3000K)

LENS COLOR/OPTICS PEAK BEAM INTENSITY
(CANDELA)		 ILLUMINANCE
(LUX @ 10M)		 MEASURED OUTPUT
(LUMENS)		 RAW OUTPUT
(LUMENS)		 OUTPUT COLOR
Driving Sport 103,000 cd 1,300 lux 3,700 lm 4,800 lm 3000K Yellow
Driving Pro 131,600 cd 1,700 lux 7,900 lm 8,900 lm 3000K Yellow
Flood Sport 3,500 cd 40 lux 3,700 lm 4,800 lm 3000K Yellow
Flood Pro 6,800 cd 80 lux 7,900 lm 8,900 lm 3000K Yellow
Spot Sport 360,200 cd 4,000 lux 3,700 lm 4,800 lm 3000K Yellow
Spot Pro 227,000 cd 2,900 lux 7,900 lm 8,900 lm 3000K Yellow
Combo Sport 71,200 cd 820 lux 3,700 lm 4,800 lm 3000K Yellow
Combo Pro 58,500 cd 750 lux 7,900 lm 8,900 lm 3000K Yellow
Warranty
Limited lifetime warranty.
