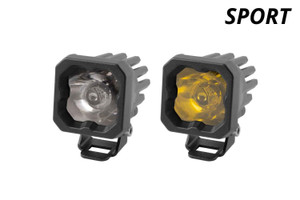

A pair of 1" LED pods by Diode Dynamics, the smallest item in their Stage Series.

Diode Dynamics | SSC1 Pro Standard Mount LED Pod

Diode Dynamics
SKU:
DD-SSC1P
$129.95 - $239.95
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Overview

Elevate visibility and style with the ultra-compact, high-performance Diode Dynamics SSC1 Pro LED Pod. Engineered with precision, these premium LED pods deliver exceptional brightness and unmatched efficiency—perfect for your 250 Series Land Cruiser or GX 550.

Key Features

  • Ultra‐compact, single‐LED form factor—ideal for mounting in tight spaces where larger pods won't fit.

  • High-intensity 10-watt LED chip (per pod).

  • Pin-fin aluminum heatsink for superior thermal management and long-term performance.

  • TIR (Total Internal Reflection) optics—maximizes light output by focusing the beam precisely, reducing glare, and enhancing efficiency.

  • Selectable beam patterns (wide, flood, spot).

  • Accent backlight in amber or red, fully illuminating the TIR optic for added style and functionality.

  • Deutsch DT-style connector with included pigtail—easy install with optional harnesses available.

  • Rugged U.S. build—designed, torture-tested, and assembled in the USA.

  • Proven durability—IP67 water/dust rating, SAE J575 compliance for vibration, heat, and corrosion resistance.

Why Choose SSC1?

Compact yet powerful, the SSC1 is perfect for auxiliary lighting where space is tight—like A-pillars, bumpers, or mirror pods on the LC250. Its backlighting feature adds a customizable accent for both function and flair. Thoughtfully engineered with thermal controls and rugged materials, SSC1 pods are built to endure extreme conditions while delivering superior light quality and precision.

Specifications

Diode Dynamics SSC1 – White Lens (6000K)

LENS COLOR/OPTICS PEAK BEAM INTENSITY
(CANDELA)		 ILLUMINANCE
(LUX @ 10M)		 MEASURED OUTPUT
(LUMENS)		 RAW OUTPUT
(LUMENS)		 OUTPUT COLOR
Flood Sport 400 cd 4 lux 1,030 lm 1,449 lm 6000K White
Flood Pro 925 cd 9 lux 2,300 lm 2,375 lm 6000K White
Wide Sport 2,500 cd 25 lux 1,030 lm 1,449 lm 6000K White
Wide Pro 5,400 cd 54 lux 2,300 lm 2,375 lm 6000K White
Spot Sport 50,000 cd 500 lux 1,030 lm 1,449 lm 6000K White
Spot Pro 23,000 cd 230 lux 2,300 lm 2,375 lm 6000K White

Diode Dynamics SSC1 – Yellow Lens (3000K)

LENS COLOR/OPTICS PEAK BEAM INTENSITY
(CANDELA)		 ILLUMINANCE
(LUX @ 10M)		 MEASURED OUTPUT
(LUMENS)		 RAW OUTPUT
(LUMENS)		 OUTPUT COLOR
Flood Sport 380 cd 4 lux 1,000 lm 1,305 lm 3000K Yellow
Flood Pro 780 cd 8 lux 2,200 lm 2,375 lm 3000K Yellow
Wide Sport 2,400 cd 24 lux 1,000 lm 1,305 lm 3000K Yellow
Wide Pro 4,600 cd 46 lux 2,200 lm 2,375 lm 3000K Yellow
Spot Sport 43,200 cd 432 lux 1,000 lm 1,305 lm 3000K Yellow
Spot Pro 18,000 cd 180 lux 2,200 lm 2,375 lm 3000K Yellow
Warranty
Limited lifetime warranty.
