Diode Dynamics | SSC2 2.0 Max Standard Mount LED Pod
Diode Dynamics
$239.95 - $479.95
(No reviews yet)
Write a Review
Diode Dynamics
Diode Dynamics | SSC2 2.0 Max Standard Mount LED Pod
Overview

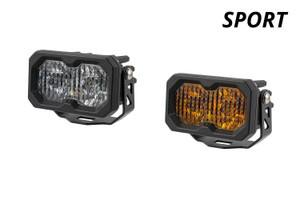

The SSC2 Max 2.0 is Diode Dynamics’ most powerful 2″ LED pod yet, packing maximum performance into a compact housing. Engineered with cutting-edge TIR optics and Osram HX Boost emitters, the SSC2 Max projects an incredible beam distance and unmatched output for its size—making it the ultimate ditch light, fog light, or auxiliary lighting upgrade for your 2024+ Toyota Land Cruiser 250 or Lexus GX 550.
Choose white (6000K) for a crisp, modern look, or selective yellow (3000K) for superior visibility in fog, rain, and snow. Available as a single pod or pair, with multiple beam patterns (Driving, Combo, Flood, SAE Fog, Spot) to match your adventure.
Built trail-ready, the SSC2 Max features an IP69K waterproof rating, rugged aluminum housing, shatter-resistant polycarbonate lens, and a sealed Deutsch-style connector. Compact, reliable, and insanely bright—the SSC2 Max is proof that big performance comes in small packages.
Key Features:
-
Max Output – Highest-performing 2″ pod in the SSC2 lineup
-
Single or Pair Options – Configure your setup easily
-
Color Choices – White (6000K) or Yellow (3000K) output
-
Beam Patterns – Driving, Combo, Flood, SAE Fog, or Spot
-
Durable Build – Aluminum housing, polycarbonate lens, IP69K waterproof
-
Perfect Fit – Compact design for bumpers, ditch light brackets, or custom mounts
Specifications
SSC2 2.0 Output Specs – White Lens (6000K)
| LENS COLOR/OPTICS | PEAK BEAM INTENSITY (CANDELA) |
ILLUMINANCE (LUX @ 10M) |
RAW OUTPUT (LUMENS) |
OUTPUT COLOR |
|---|---|---|---|---|
| SAE Driving Sport | 43,500 cd | 435 lux | 1,190 lm | 6000K White |
| SAE Driving Pro | 68,500 cd | 685 lux | 3,140 lm | 6000K White |
| SAE Driving Max | 75,000 cd | 750 lux | 3,960 lm | 6000K White |
| Flood Sport | 750 cd | 8 lux | 1,190 lm | 6000K White |
| Flood Pro | 1,550 cd | 16 lux | 3,140 lm | 6000K White |
| Flood Max | 1,700 cd | 17 lux | 3,960 lm | 6000K White |
| SAE Fog/Wide Sport | 9,300 cd | 93 lux | 1,190 lm | 6000K White |
| SAE Fog/Wide Pro | 13,000 cd | 130 lux | 3,140 lm | 6000K White |
| SAE Fog/Wide Max | 15,000 cd | 150 lux | 3,960 lm | 6000K White |
| Combo/Driving Sport | 11,500 cd | 115 lux | 1,190 lm | 6000K White |
| Combo/Driving Pro | 20,000 cd | 200 lux | 3,140 lm | 6000K White |
| Combo/Driving Max | 23,000 cd | 230 lux | 3,960 lm | 6000K White |
| Spot Sport | 140,000 cd | 1,400 lux | 1,190 lm | 6000K White |
| Spot Pro | 155,000 cd | 1,550 lux | 3,140 lm | 6000K White |
| Spot Max | 175,000 cd | 1,750 lux | 3,960 lm | 6000K White |
SSC2 2.0 Output Specs – Yellow Lens (3000K)
| LENS COLOR/OPTICS | PEAK BEAM INTENSITY (CANDELA) |
ILLUMINANCE (LUX @ 10M) |
RAW OUTPUT (LUMENS) |
OUTPUT COLOR |
|---|---|---|---|---|
| SAE Driving Sport | 34,000 cd | 340 lux | 1,190 lm | 3000K Yellow |
| SAE Driving Pro | 54,500 cd | 545 lux | 3,140 lm | 3000K Yellow |
| SAE Driving Max | 58,000 cd | 580 lux | 3,960 lm | 3000K Yellow |
| Flood Sport | 550 cd | 6 lux | 1,190 lm | 3000K Yellow |
| Flood Pro | 1,100 cd | 11 lux | 3,140 lm | 3000K Yellow |
| Flood Max | 1,200 cd | 12 lux | 3,960 lm | 3000K Yellow |
| SAE Fog/Wide Sport | 7,500 cd | 75 lux | 1,190 lm | 3000K Yellow |
| SAE Fog/Wide Pro | 11,000 cd | 110 lux | 3,140 lm | 3000K Yellow |
| SAE Fog/Wide Max | 11,500 cd | 115 lux | 3,960 lm | 3000K Yellow |
| Combo/Driving Sport | 8,100 cd | 81 lux | 1,190 lm | 3000K Yellow |
| Combo/Driving Pro | 15,000 cd | 150 lux | 3,140 lm | 3000K Yellow |
| Combo/Driving Max | 16,500 cd | 165 lux | 3,960 lm | 3000K Yellow |
| Spot Sport | 115,000 cd | 1,150 lux | 1,190 lm | 3000K Yellow |
| Spot Pro | 135,000 cd | 1,350 lux | 3,140 lm | 3000K Yellow |
| Spot Max | 150,000 cd | 1,500 lux | 3,960 lm | 3000K Yellow |
Limited lifetime warranty.
